Determining the relative orbital radius of Mars

The opposition of a planet is a chance to determine its approximate relative orbital radius by simple observations.

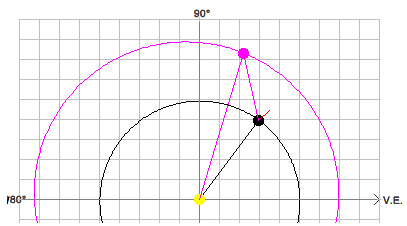

stationary retrograde
November 15, 2007:

Mars becomes stationary and then starts its retograde opposition loop (-0.9 mag).

December 18, 2007:
Closest approach of Mars and Earth (23:47 UT, 0.5893 AU,
-1.6 mag)

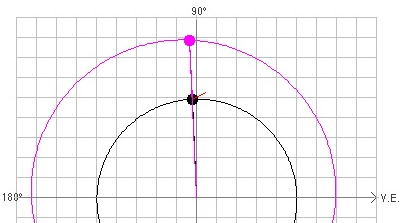

Mars opposition 2007
December 24, 2007:

Mars opposition on Earth (
19:47 UT, 0.5929 AU, -1.6 mag) in constellation Gemini,

39 days after start of retrograde loop.

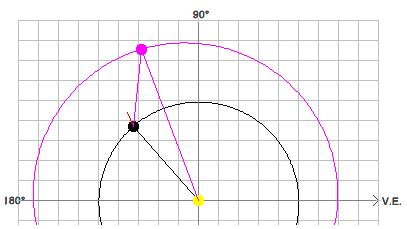

Mars prograde
January 31, 2008:

Mars becomes stationary to end its retograde opposition loop and proceeds in prograde apparent motion
(-0.6 mag),

38 days after opposition.

We neglect the inclination of Mars' orbit:

Cp. Backhaus

My applet: PlanetMotion

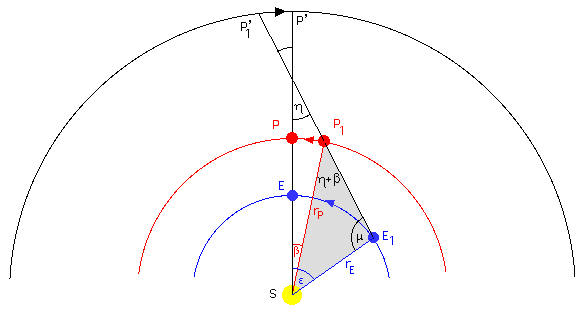

E1, P1
positions of the Earth, and Mars moving retrograde before opposition
E, P
positions of the Earth and Mars at opposition
ε, β central angles of the Earth and Mars due to the motion around the Sun
rE , rP orbital radii of the Earth and the planet

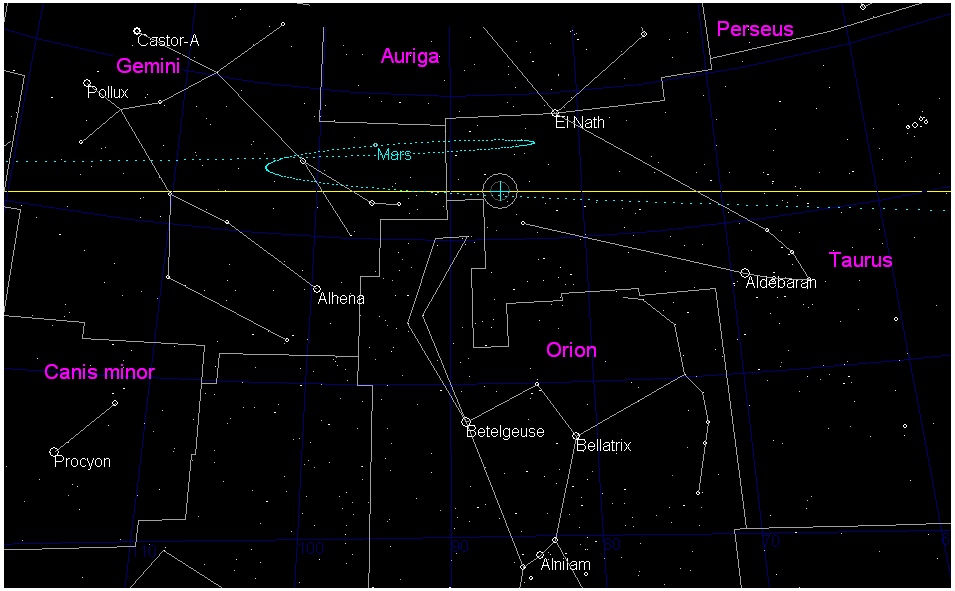

Seen from the Earth against the background stars the line of sight to Mars is turning retrograde from P1' to P by an angle η which can be be measured.

Applying the sine rule to the triangle SE1P1 we get:

rP / rE = sin µ / sin(η+β)
and from
(ε-β) + µ + +β) = 180° = ε + µ + η
we get
rP / rE = sin(η+ε)/sin(η+β)
Finally the orbital radius rP = rMars is given by:
Mars orbital radius
The angles can be computed from the sidereal orbital periods of the Earth (365.25 d) and Mars (686.96 d) and the difference t of time:

ε = t*360°/365.25 d = t*0.986 °/d
β = t*360°/686.96 d = t*0.524 °/d

We have to measure the angle
η in the sky using photos.

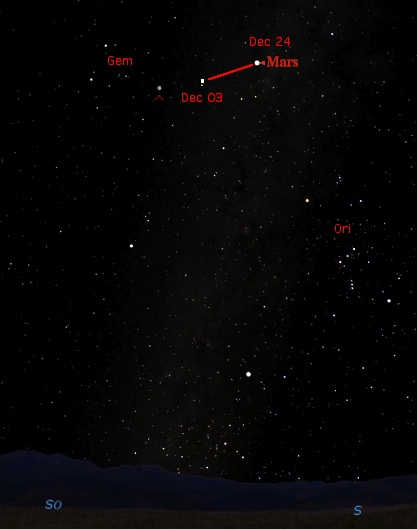

2007 Dec 03, 23 UT to Dec 24, 23 UT: t = 21 d, η = 7.6°

ε = 20.7°, β =11.0°

rMars = sin(7.6°+20.7°)/sin(7.6°+11.0°) = 1.49 AU

semimajor axis: 1.524 AU, perihelion 1.405 AU, aphelion 1.639 AU (Mars Fact Sheet, NASA)

2007 Dec 03, 23 UT: rMars/rEarth = 1.5504 AU/0.9857 AU = 1.573

2007 Dec 24, 23 UT: rMars/rEarth = 1.5760 AU/0.9835 AU = 1.602
